2024 LUSTEC MODEL 557 WIDE SPREAD 3X4 DROP DECK WIDENER

Have a similar truck to sell? List yours now for $29.

Mobile Enquiry Form - Image
2024 LUSTEC MODEL 557 WIDE SPREAD 3X4 DROP DECK WIDENER
POA POA

Contact Seller in Queensland

Get answers or find a good time for a test drive. Take the next step and contact the seller.

Add a personal note (optional)

Share This Listing With A Friend

Awesome!
You'll be the first to know about price drops and new listings!
2024 LUSTEC MODEL 557 WIDE SPREAD 3x4
POA

Getting a quote won't affect your credit score.

Repayment Amount:

Loan Amount:

* Calculated repayment is indicative only.

Find Out More About This Dealer

Lustec
250 Karrabin Rosewood Rd, Karrabin Queensland 4306

LUSTEC is an Australian owned family business with a long history in the trailer industry. The Lusty name is well renowned throughout the Australian trailer industry for designing and building the highest quality products. Chris Lusty is the founder and owner of LUSTEC and continues that reputation, meticulously designing and building individual trailers for customers needs. All LUSTEC trailers are designed and built right here in Yatala by our dedicated and experienced team of professionals.

The LUSTEC team is dedicated to delivering on their commitment to quality, customer experiences and after sales service and repair. From the first interaction through to post sales service, you can be assured our team will support you to ensure our trailers carry you and your business into the future.

Price
POA
POA
Need a finance quote?

Getting a quote won't affect your credit score.

?
Get finance pre-approved from
( 60 months - 6.85% p.a. )
Find out more about this dealer?
  • Details
Vehicle
2024 LUSTEC MODEL 557 WIDE SPREAD 3X4 DROP DECK WIDENER
Location
Condition
Year

Map

250 Karrabin Rosewood Rd, Karrabin Queensland 4306

Directions:

Seller's Comment

$POA

Model 557

3x4 Drop Deck Widener - Wide Spread

The 557 3x4 Drop Deck Widener frame is fabricated from Grade 700 plate. The frame design is a 'through beam' chassis which allows for greater strength, maximum protection of axles, and low deck heights.



Spec Overview

Maximum Trailer Capactity

45,000kg

Legal Payload on Tri Group

27,000kg

Widening and Weights

Decks widen to 4m and are fully rated at maximum width

Approx. Tare Weight

11.8 - 13.5 tonnes, depending on options fitted





Standard Inclusions

Gooseneck

Double king pin non-oscillating skid plate with fold over decks and fold down ramps

Main Deck

920mm wide outer decks allow the trailer to widen from 2.5 metres to 4 metres. Decks widen using hydraulic phasing cylinders

Tie Down Points

Equipped with 6 tonne load rated swivelling tie down points recessed into the coaming

Ringfeder Bracket

Equipped with bracket only. Hydraulic, air and electrical lines run to the bracket bulkhead

Ramps

Single fold - fabricated from Grade 700 plate with 25mm x 12mm grip lugs

Legs

Hydraulic landing legs with manual and remote control

Axles & Suspension

K-Hitch air bag suspension with K-Hitch drum brake axles

Hydraulic Pressure

Kohler Petrol 7HP

Container Locks

6 x twist locks supplied with 2 x container stands. Trailer has provisions to carry 1 x40' container or 2 x 20' containers or 1 x 20' heavy container in the middle of the deck





Options

We have a large range of options to personalise your new Lustec float. Please talk to our team about any requests you may have. Listed below is a small sample of what we can do.

Lighting

Extra side lights. LED work lights

Top of Decks

Extra tie down points. Rubber on decks. Drop wells with removable infill panels

Winches

Selection from a range of different size winches and mounting locations

Deck Widening

Widening to 4.2m, and fully rated at maximum width

Ramps

Bi-fold for improved loading angle. Tri-fold ramps pictured

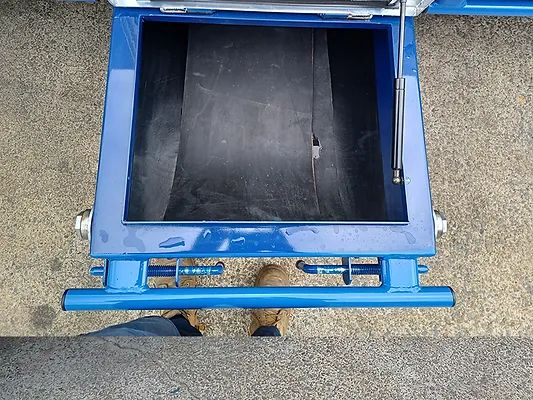

Tool Boxes

Additional tool boxes can be spec'd including both small and large draw style tool boxes.
