2025 Austate TRIAXLE TS Flatbed
Have a similar truck to sell? List yours now for $20.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
- Details
Australia's best rated
Seller's Comment

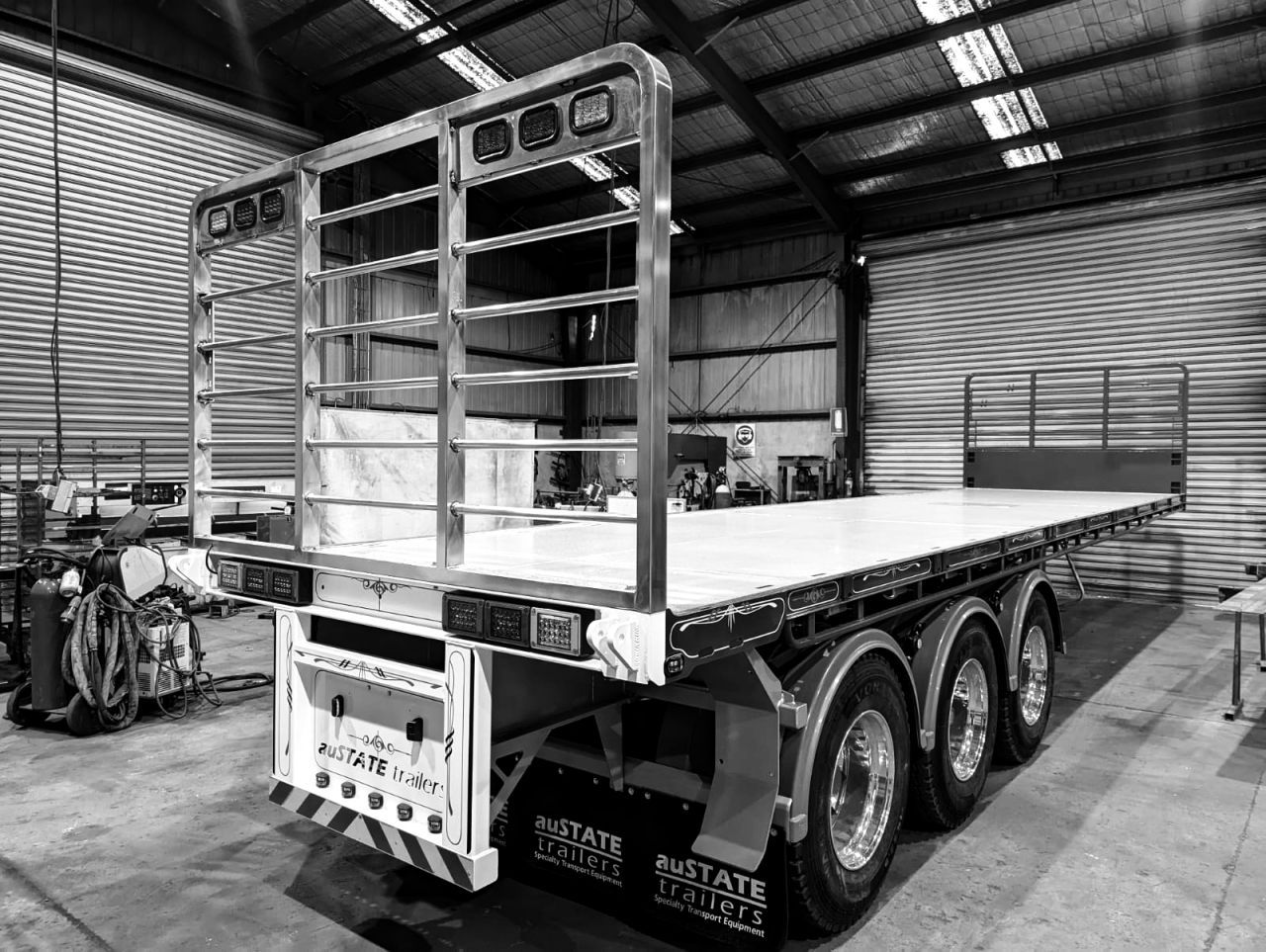

Tri Axel Tabletop with rear mount fork attachment. Its at auSTATE Services on the floor waiting for new colours and a Brand new home.

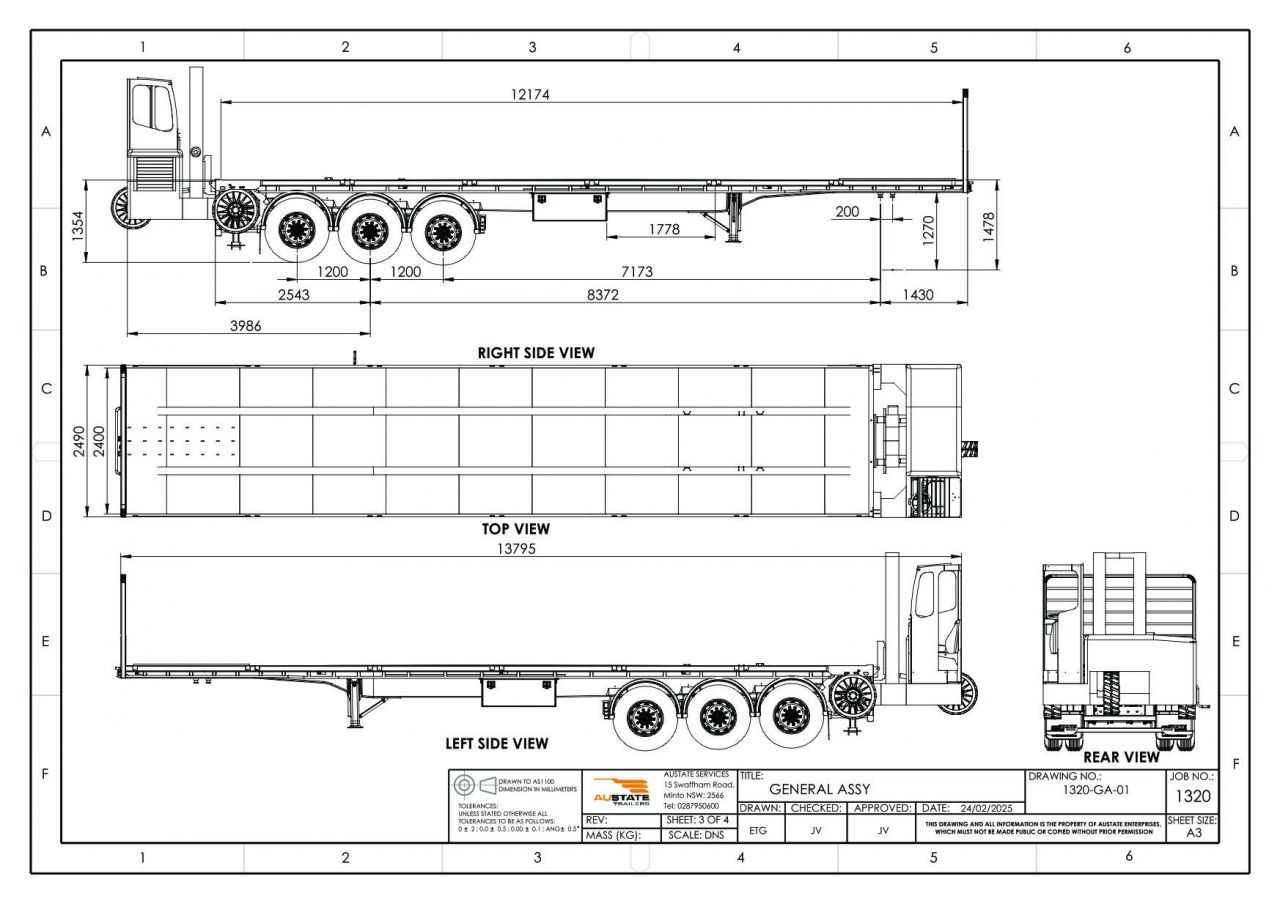

Model - Flat Top trailer
Frame - Hi tensile fabricated beam
Length - 12350mm
Width - 2495mm
Height - 1270mm skid plate height with 1460 deck height
Tow Coupling Front - 1 50mm bolt on king pin with provision for bloke on 10mm skid plate
Landing Legs - 1 Jost module with compensating feet
Suspension - 3 BPW ALII Highway series airbag suspension
Axles - 3 BPW HZA 10110-15 axles
Hubs - 6 10- stud, 285 PCD grease filled ECO PLUS 3 hubs
Axle Brakes - 6 420 x 180mm Drum Brakes
Braking System - 1 Wabco EBS
Hubometer - 1 Yes
Front Frame -Fabricated RHS fixed front headboard with rolled corners, bottom enclosed with 4 bars across top, 1500mm high
Rear Frame - Provision for bolt on tail board
Fork Attachment - 1 Austate rear fork mount attachment to suit Moffet and Loadmac
Gate Pockets - 24 yes 1900mm spacing
Tie Rail Post - RHS droppers
Rope Rail - 25NB
Floor - 3mm chequer plate
Tyres - 12 11R 22.5 tyres
Wheels Inner - 6 Machine finish alloy
Wheels Outer - 6 Polished alloy
Tyre Carrier -1 To suit fork tyre at rear
Guards/Flaps - Truckmate Full radius guards (Colour TBA)
Electrical - Lucidity OEM harness with 2x 7pin plugs at front and 6 pin at rear
Standard EBS harness and front plug
Lights – Rear 2 Lucidity Jumbo red, red, amber
Lights – Side 10 Lucidity side clearance lights 5 per side
Tool Box - 2 1200x450x450mm tool boxes painted
Grit Blast - Grit blasted, under coated in epoxy primer and sealed.
Paint – Front 2k (white, silver or black standard, group colours and metallic extra)
Paint – Rear 2k (white, silver or black standard, group colours and metallic extra)
Paint – Coaming 2k (white, silver or black standard, group colours and metallic extra)
Paint – Chassis, Floor 2k (white, silver or black standard, group colours and metallic extra)
Signage - Per ADR
Compliance - Chassis plate and Vin. Number Rover compliant Wabco End of Line Test
Registration - Austate will facilitate registration on your behalf and invoiced separately prior to delivery of equipment
Delivery - Ex Minto NSW
Servicing -1st service complementary at Austate service @ 5000klms or 3 months of ownership
