2025 Takeuchi TB217R Reduced Radius Excavator
Have a similar truck to sell? List yours now for $20.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
- Details
Australia's best rated
Map
169 Nursery Road, Macksville New South Wales 2447
Directions:
Seller's Comment

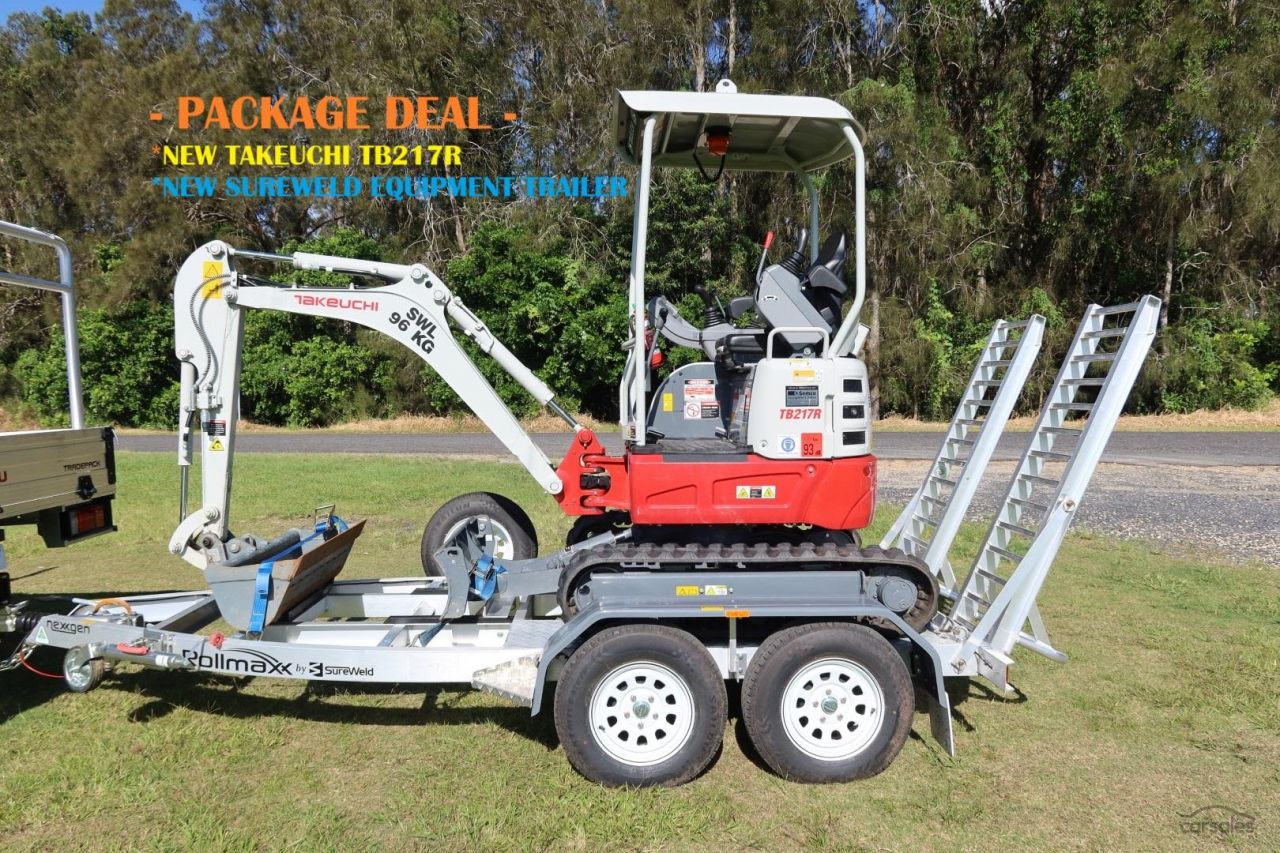

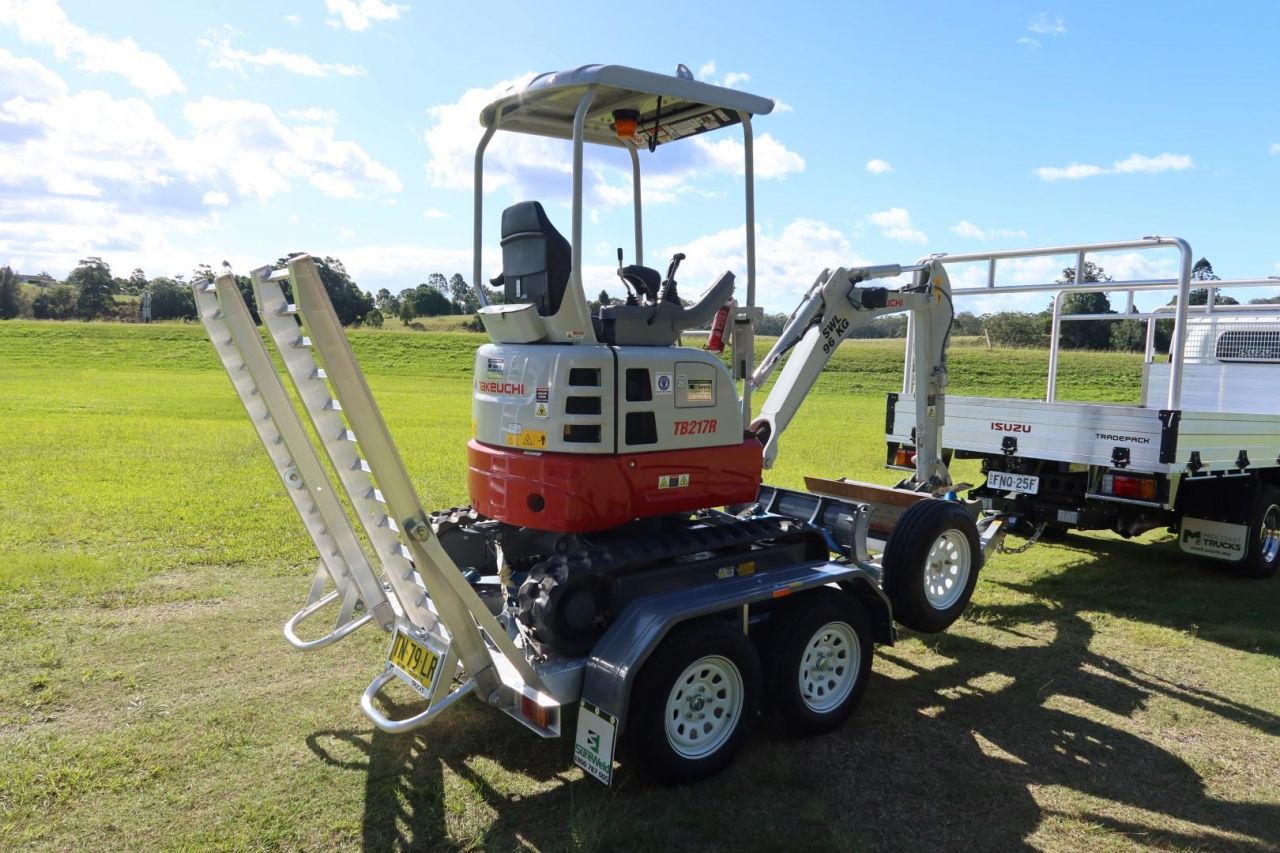

-Stock # 600637 – NEW TAKEUCHI TB217R - Reduced Radius Excavator
-Stock # 600693 - SUREWELD SW2600 – EQUIPMENT TRAILER
(Truck NOT included. See separate deal listed "Stock # B85983")
MACHINE DETAILS:
1 x only NEW TAKEUCHI TB217R - Reduced Radius Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight: 1680Kg
Overall Width: Crawler retracted 980mm; Crawler extended 1300mm
Overall Height: 2345mm
Transport length: 1570mm
Max Dump height: 2545mm
Max Dig depth: 2390mm
ENGINE:
Yanmar 3TNV70 EU Stage V Emission compliant
Rated Output (ISO 14396) 11.5 kW/2,400 min-¹
Maximum Torque 52.6 Nm/1,800 min-¹
HYDRAULIC SYSTEM:
System: Variable Displacement
Variable Displacement Pump
Straight Travel Circuit
Hydraulic Joystick Controls
Foot Pedal Control for Service Port 1
Auxiliary Hydraulic Circuit Plumbed to Arm
Hydraulic Tank with Fluid Level Sight Gauge
Dual Auxiliary Circuits; 2-way flow selectable.
Service Port 1(SP1); Flow Rate 33.6L/min, Hydraulic pressure 21.0MPa
SP2 Auxiliary circuit; 10.8L/min, Hydraulic pressure 20.0MPa
SP3 Hydraulic pressure 20.0MPa
BOOM & ARM CONFIGURATION:
Independent Mono Boom Swing
Cushioned Boom and Swing Cylinders
Top Mount Boom Cylinders
930 mm Arm
1,130 mm Arm
Arm and Boom Holding Valve with
Lift Alarm (Optional)
Pattern Change Valve (ISO or G)
INCLUDING:

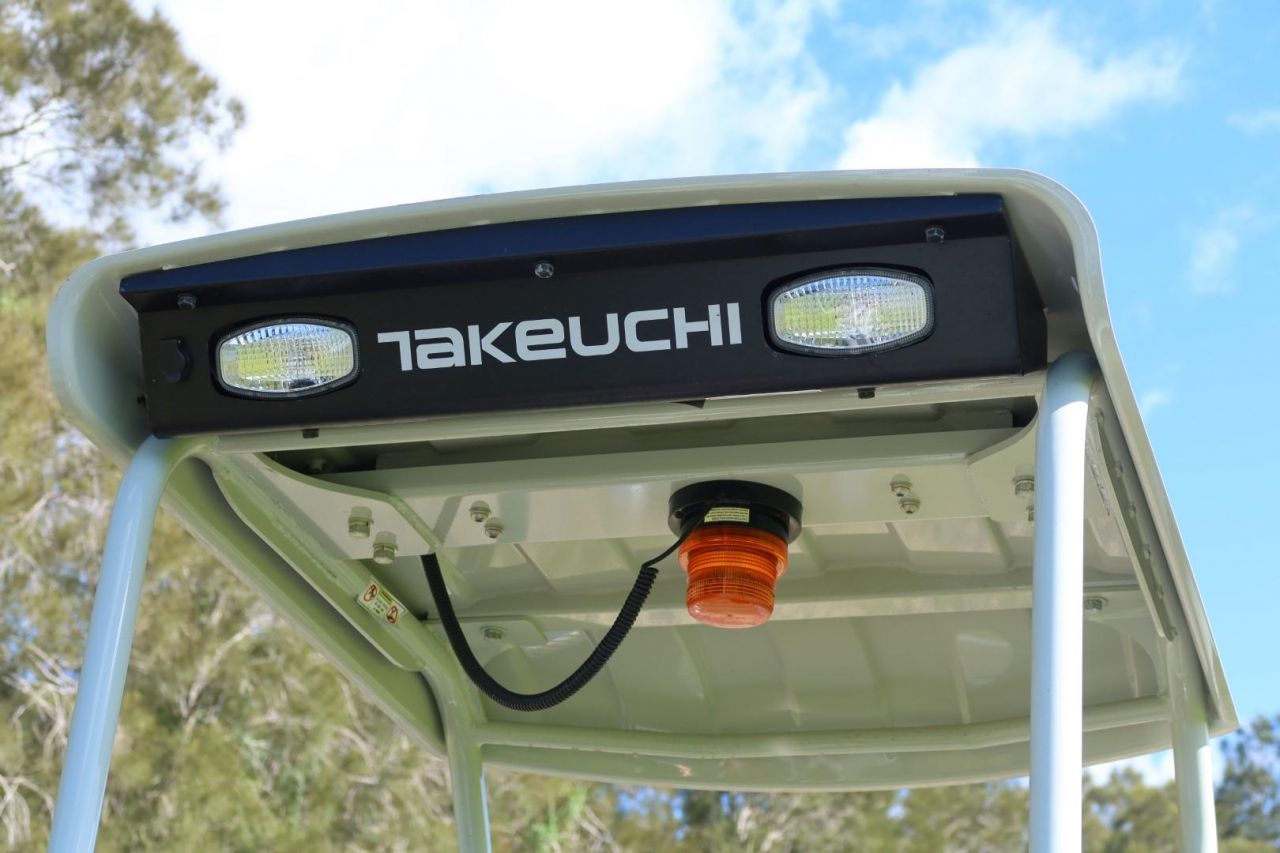

Canopy, Rubber tracks, Long Stick Arm, Long Dozer Blade, 2-Way Lever, Travel Alarm, Stop Valve
(1way/2way), PVC Deluxe Seat, Accumulator, Double Element, Heavy Counter Weight
Half hitch, mm buckets with teeth, 1000mm mud bucket & ripper
STOCK # 600637
TRAILER;
1 x only NEW SUREWELD SW2600 – EQUIPMENT TRAILER
AGGREGATE TRAILER MASS: 2600KG
ALLOWABLE PAYLOAD: 2200 KG
TARE WEIGHT: 400KG
DECK WIDTH : 1400MM
DECK LENGTH: 1900MM
BUCKET REST : 1400MM
TRAILER LENGTH: 4700MM
STOCK # 600693
