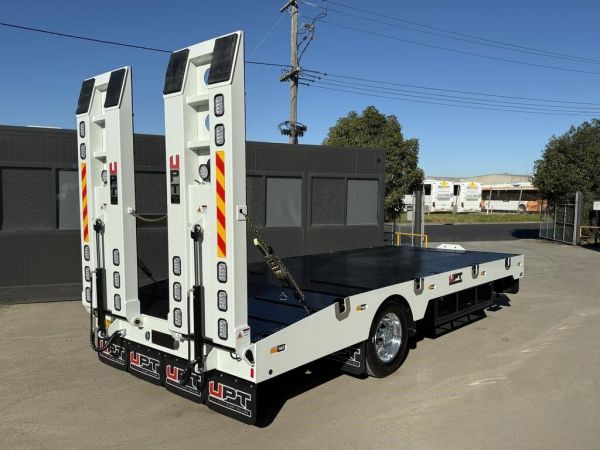

PT Custom Single Axle - Standard Inclusions:

- Deck & Beavertail (5m deck & 1.2m Beavertail ) - Customizable to your needs
- 1.5m Custom Drawbar (Height and length manufactured to suit your truck)
- Wallace Forge Pintle Hitch (Other hitches available)
- 13mm or 16mm Grade 80 Safety Chains
- 50 amp or 175 amp Anderson
- Greaseable hinges to all doors
- Up to 13.5 T ATM rated trailer
- Double acting hydraulic front leg with drawbar-mounted pendant
- Double acting hydraulic ramps with coaming-mounted pendant
- Built-in deck hydraulic power pack box with seal and keyed lock
- Heavy-duty truck battery with additional fuse protection
- 5mm checker plate steel floor
- 100mm x 50mm x 4mm cross members passing through the chassis
- 8mm Grade 350 coaming
- 6mm Grade 350 pre-cambered web plate
- 100mm x 16mm Grade 350 bottom strap
- 2400mm x 850mm 240mm x 150mm x 5mm RHS, checker plate sheeted Hydraulic ramps with greaseable bushes
- K-Hitch 19.5 axles
- Mechanical spring suspension
- Wabco EBS multi-volt braking with rollover and stability control
- ADR approved multi-volt lighting
- Anti-sail mudflap brackets
- 8 x 10mm in-deck BisAlloy chain tie points
- 8 coaming chain bars designed to sit under machine tracks
- Haulmax tyres (Designed & engineered for Australian conditions)
- Drop-down rear landing legs
- Class 3 sandblasted full trailer, including the underside
- PPG Protec EX-408 zinc phosphate primer
- PPG Protec 625 2-pack
- 2 maxibinders for ramp dogging
- Chrome nut covers to axle studs
- Digital hub odometer
- 2 side steps
- 1 beavertail step at rear of trailer
- 3-year warranty on workmanship
